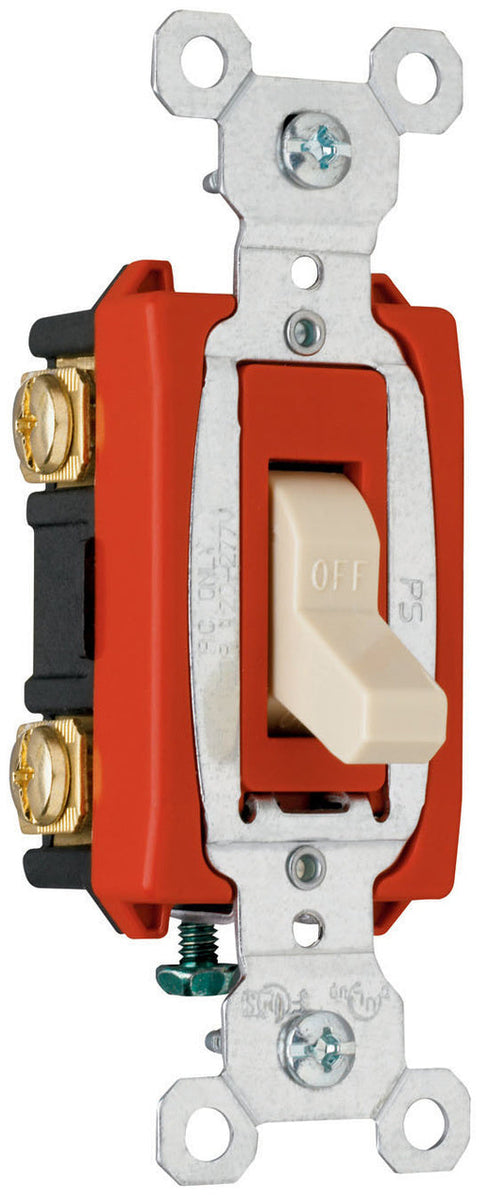

Pass & Seymour Hard Use Specification Grade Switch, Ivory (125 V, Ivory)

Pass & Seymour

SKU: CSB20AC2-1
  • $9.95
    Unit price per



Construction 2-Pole Switch, Back and Side-Wire, 20A 120/277V.

Features
One-piece brass alloy contact arm for reliable electrical performance.
One-piece steel strap with integral ground is plated for corrosion resistance.
High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.
Heavy-duty toggle bumpers for smooth and quiet operation.
Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.
Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.
Cam designed for fast make with positive break action to minimize arcing and prolong switch life.
Oversized silver alloy contacts for longer dependable switch life.
Tri-drive terminal and mounting screws.
For covering patents, see www.legrand.us/patents.
For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
